PAKR: Fast Asymptotically Optimal Kinodynamic Planning via Vectorization

Abstract

Sampling-based motion planners have been shown to be effective for systems with complex kinodynamic constraints and high dimensionality. However, these algorithms struggle to achieve real-time performance, leading to recent efforts to parallelize planning. While GPU-accelerated planners have achieved significant speedups, existing approaches require specialized CUDA programming that limits accessibility and portability.

We present Parallel Asymptotically Optimal Kinodynamic RRT (PAKR), a massively parallel kinodynamic planner leveraging JAX and the XLA compiler to achieve GPU acceleration through standard Python tooling. By combining our parallel planner with the AO-x meta-algorithm, we achieve asymptotic optimality through fast iterative replanning.

We provide a theoretical analysis of probabilistic completeness, analyze the effects of batch size and branching factor on convergence, and demonstrate scalability to complex dynamics using the MuJoCo-XLA simulator. Experiments show competitive runtimes with state-of-the-art GPU planners and superior solution quality.

Video

Methodology

Utilizing the Python-JAX jit compiler, we compile the RRT planner into a single GPU kernel, minimizing device transfer overhead. The planner performs node selection, action sampling, forward simulation, and tree building in large batches, enabling efficient parallelism. With a fast single-solve time, we can iteratively replan with decreasing cost thresholds to achieve asymptotic optimality at high frequencies.

Results

KinoPAX Experiments

These environments were taking from KinoPAX, a CUDA implementation of accelerated kinodynamic planning. Three dynamics models are used: 6d double integrator, 6d dubins airplane, and 12d quadrotor.

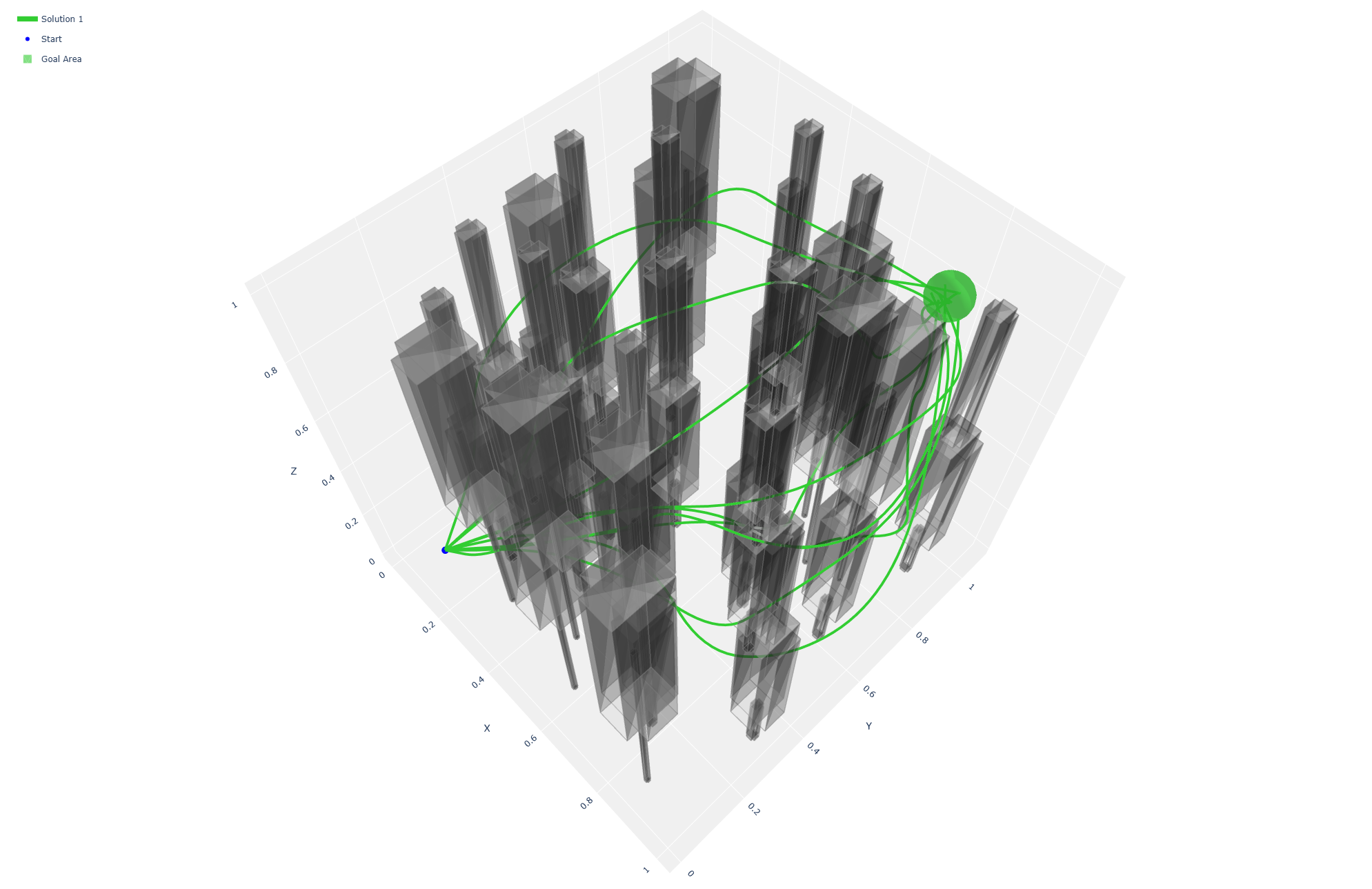

(a) Initial Tree

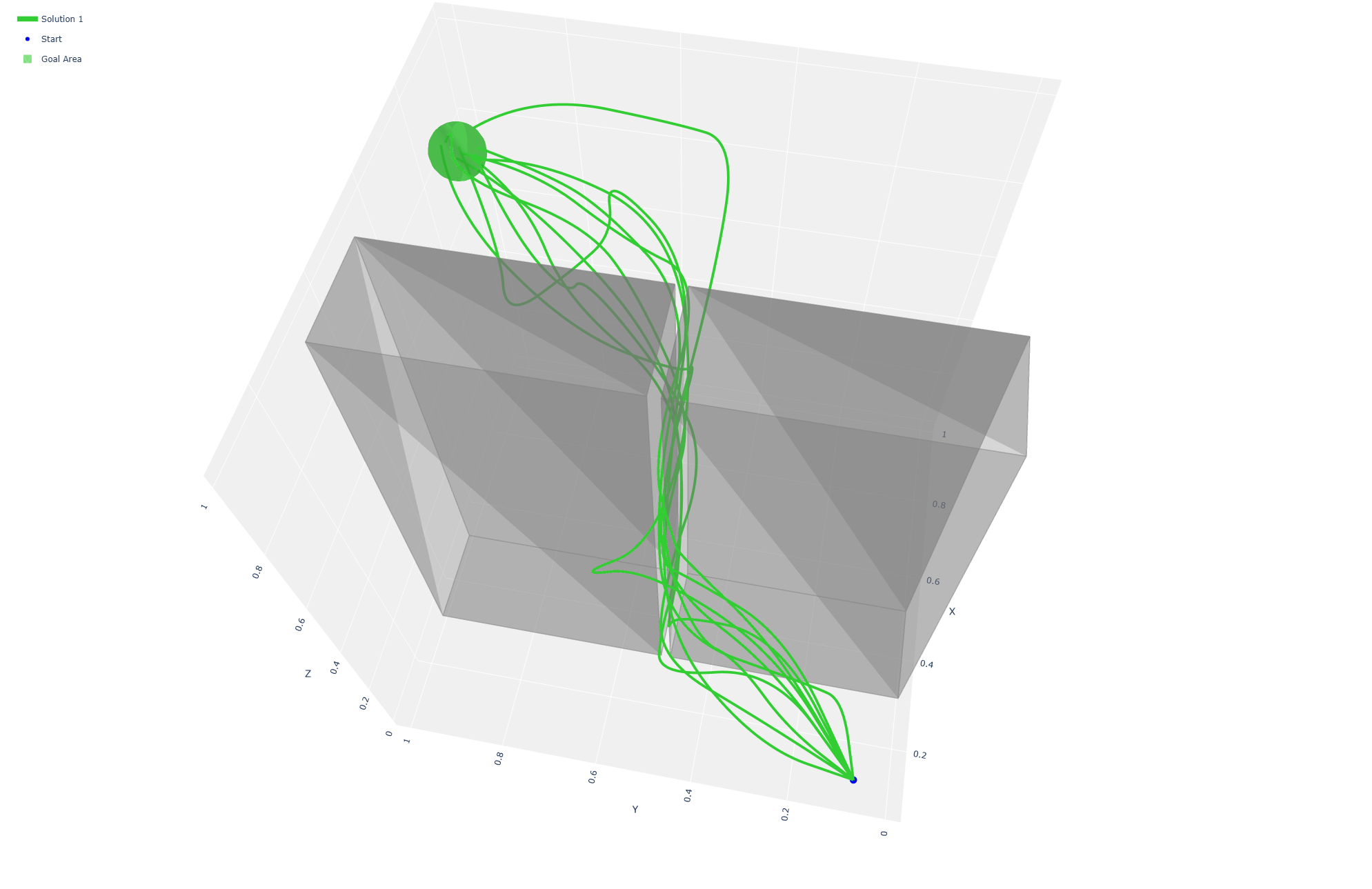

(b) Initial Narrow

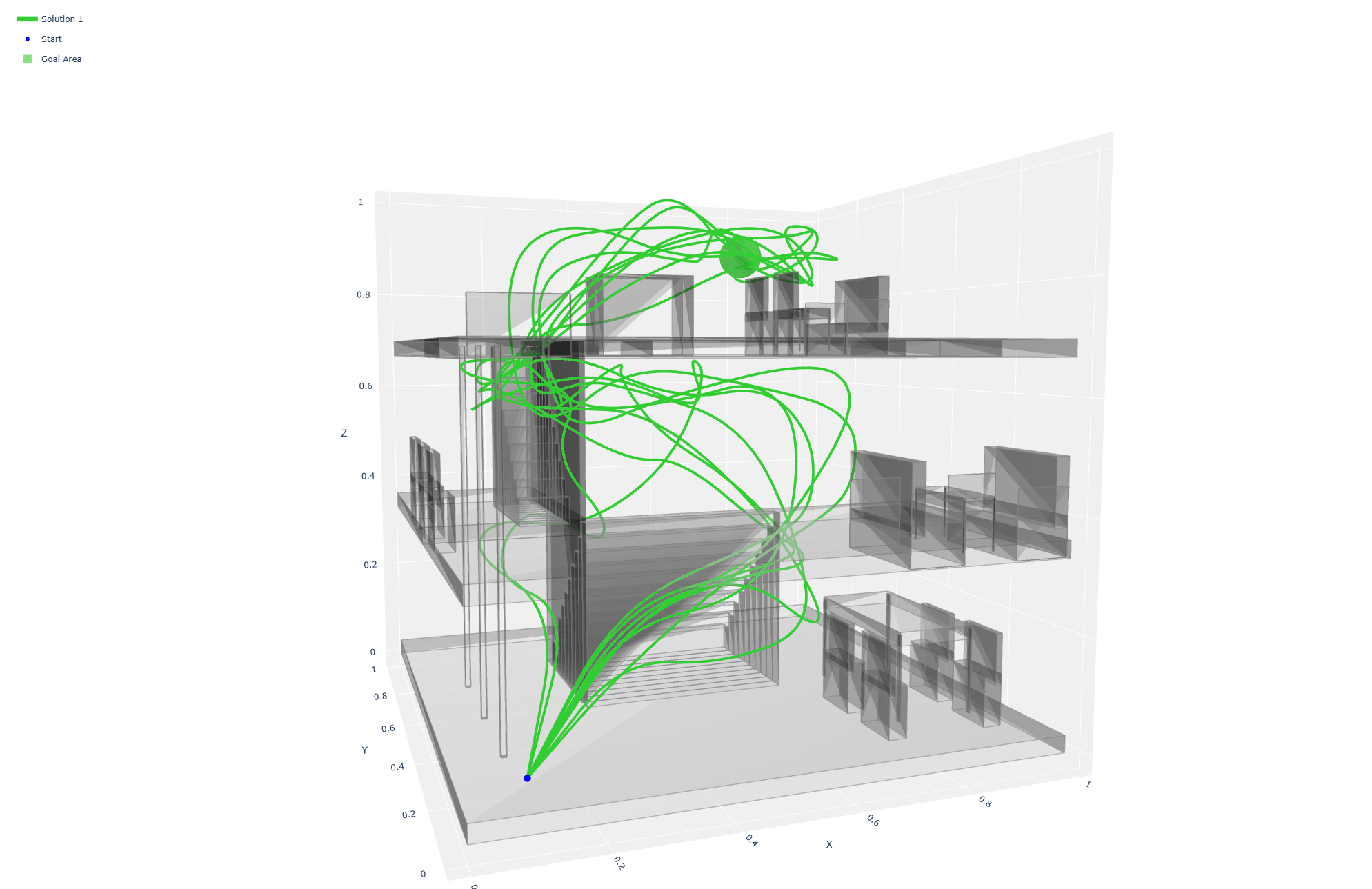

(c) Initial House

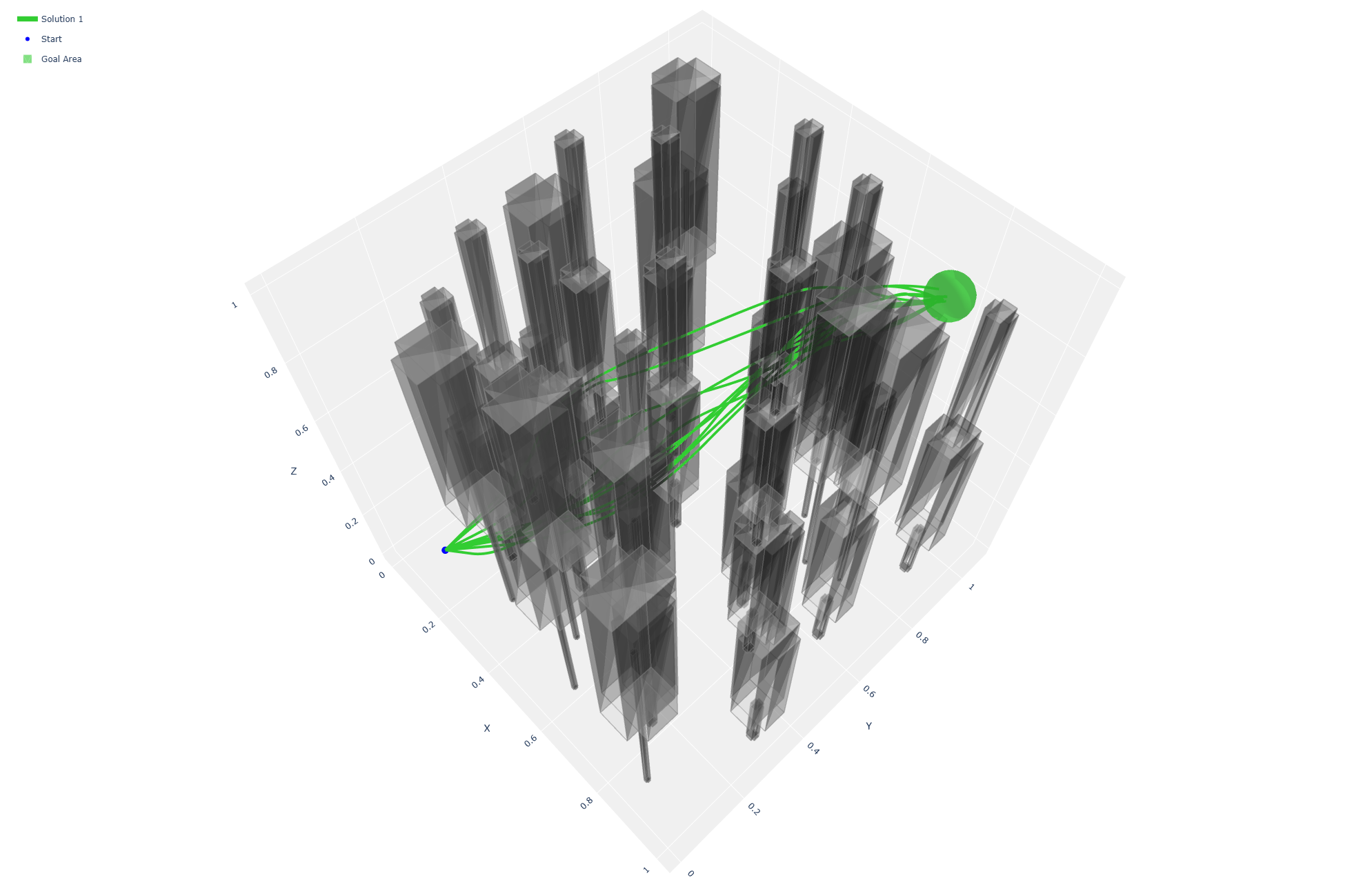

(d) Final Tree

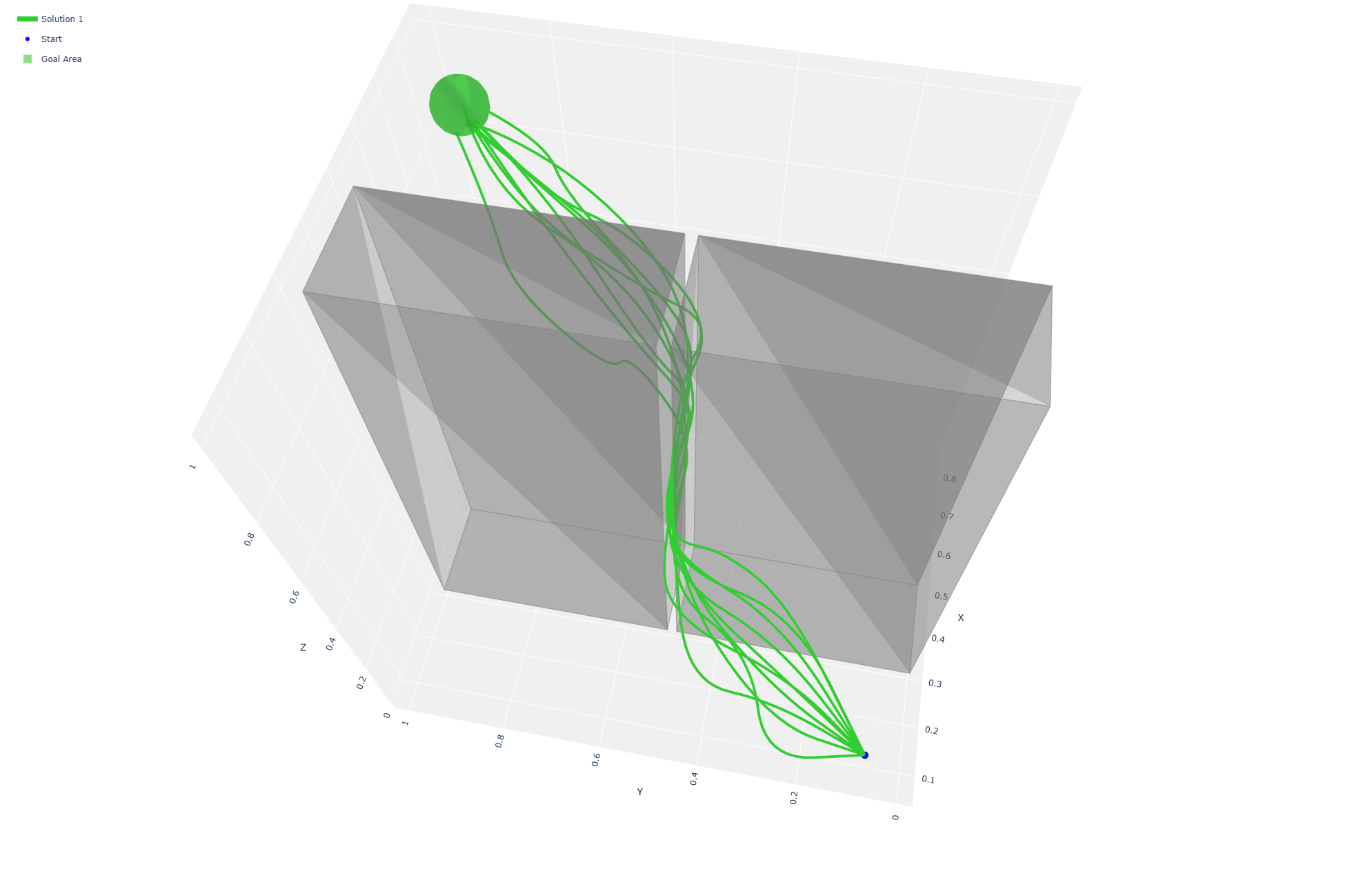

(e) Final Narrow

(f) Final House

Depiction of 10 initial and final solution trajectories (green lines) and 3d obstacle environments for PAKR, run with the double integrator model. The start and goal regions are represented by the blue and green spheres. Cost criterion is set to distance traveled to better visualize convergence.

DynoBench Experiments

To compare against optimal planners, we also evaluate against DynoBench's iDb-A* and SST* implementations. Four dynamics models are used: 3d unicycle with velocity control, 5d unicycle with acceleration control, 4d acrobot, and 12d quadrotor.

DynoBench results figure — Solutions for the 3D unicycle problem.

4d acrobot problem visualized in mujoco.

MJX Experiments

We also run our planner with the MuJoCo-XLA simulator, which provides GPU-accelerated physics simulation for complex dynamics. With MJX, we solve a 4d cartpole problem and a 10d block push problem. In addition, we use a soft growing vine simulator to demonstrate the ability of PAKR to handle complex, high-dimensional dynamics.

10d blockpush problem. Left has an easier start position.

Soft growing vine planning problem

Performance

We evaluate the performance of PAKR against KinoPAX, a gpu-accelerated planner, and two optimal planners: iDb-A* and SST*. We also analyze the convergence behavior of PAKR with respect to iterations and time, demonstrating its ability to find high-quality solutions efficiently.

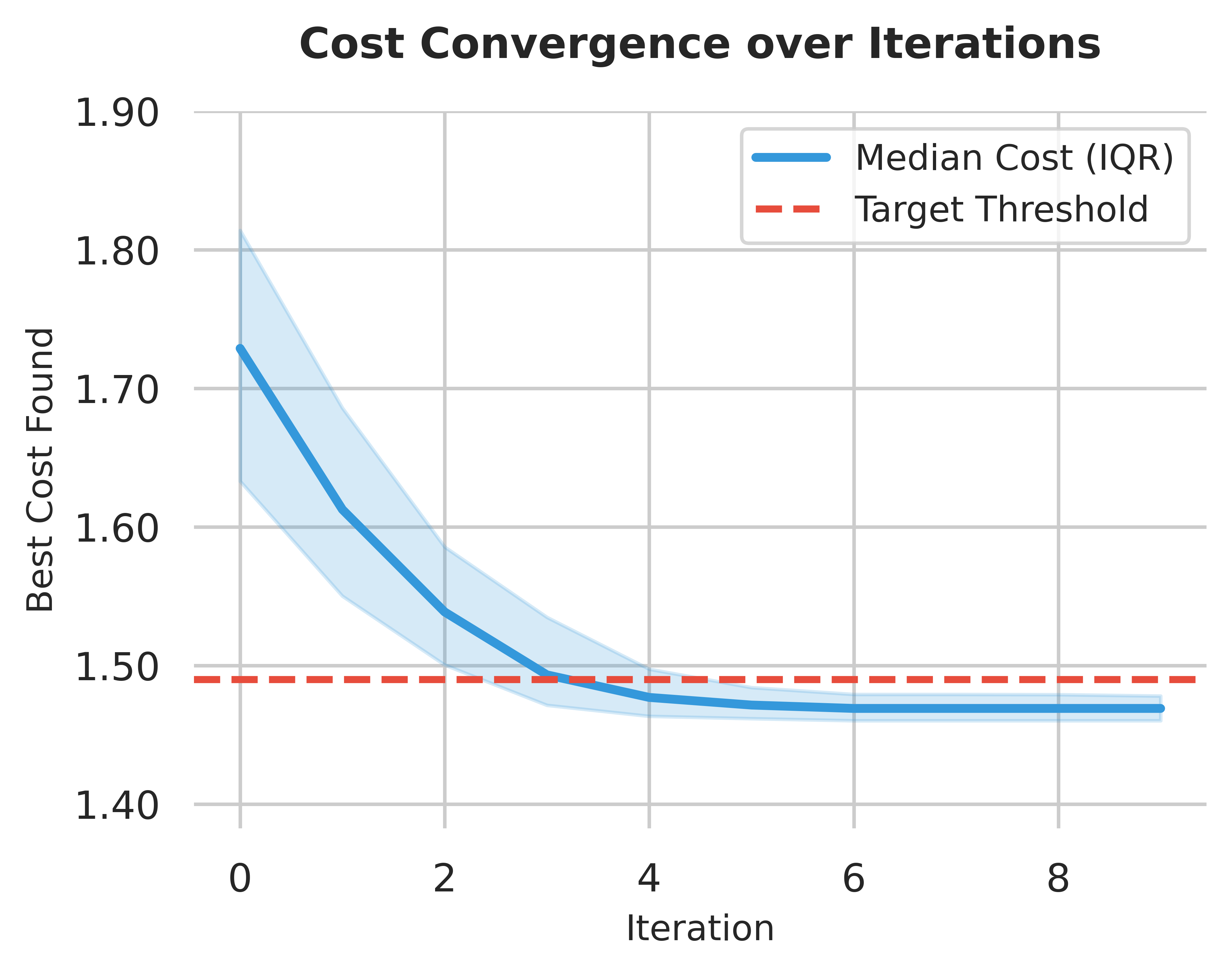

PAKR convergence analysis — iterations — PAKR convergence analysis showing median cost and interquartile range (IQR) across 100 runs for the double integrator in environment A with a cost threshold of 1.49.

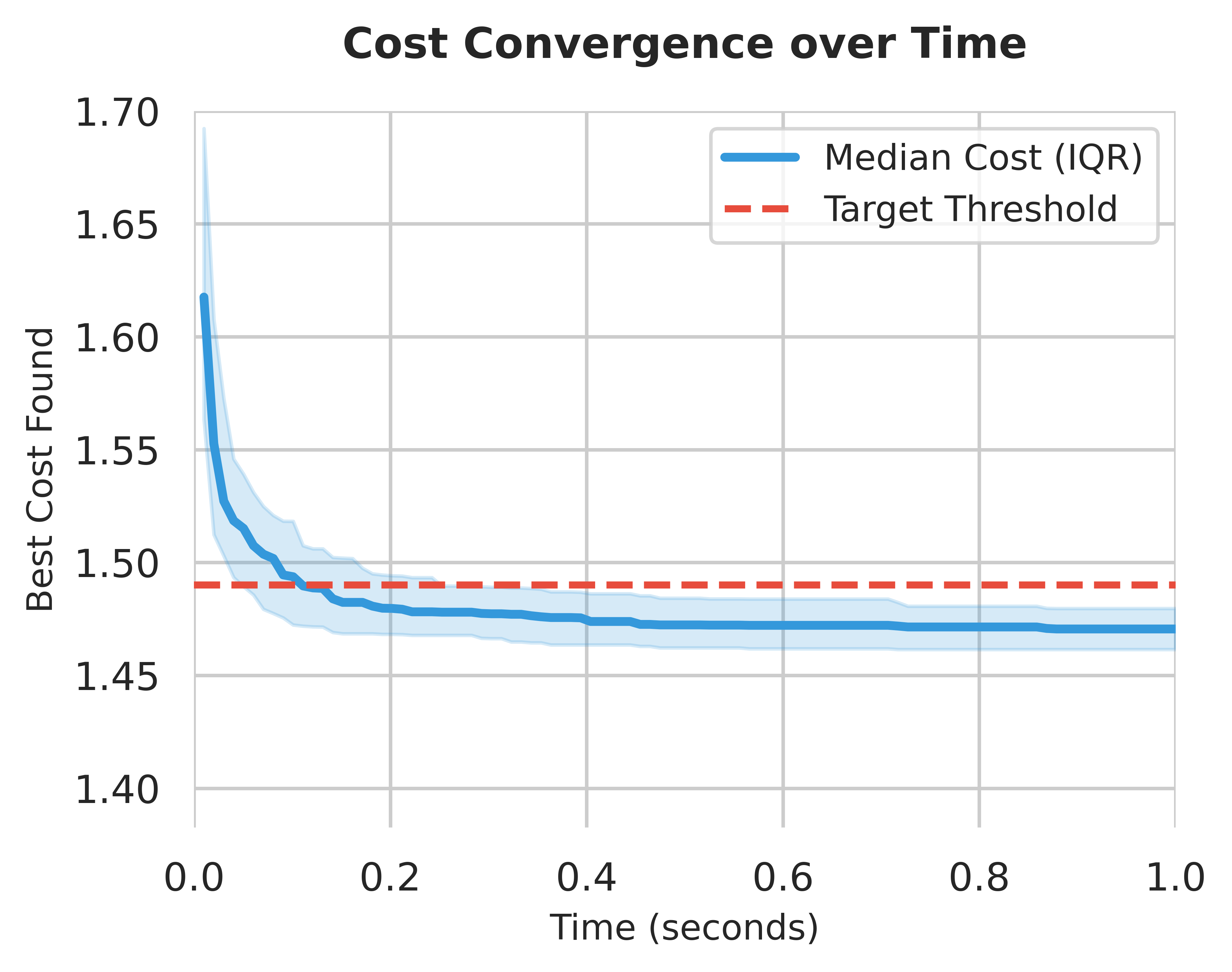

PAKR convergence analysis — time — PAKR convergence analysis showing median cost and interquartile range (IQR) across 100 runs for the double integrator in environment A with a cost threshold of 1.49.

		Env A		Env B		Env C
Dynamics	Planner	Time	Nodes	Time	Nodes	Time	Nodes
6D DI	KinoPAX	5.0ms	164k	3.5ms	144k	6.3ms	193k
6D DI	PAKR	2.5ms	9k	1.8ms	21k	5.5ms	19k
6D DA	KinoPAX	4.4ms	63k	3.7ms	72k	7.6ms	107k
6D DA	PAKR	5.4ms	19k	5.9ms	32k	14.9ms	57k
12D QC	KinoPAX	17.8ms	285k	17.8ms	285k	24.6ms	333k
12D QC	PAKR	14.9ms	71k	17.1ms	147k	51.4ms	173k

Comparison of PAKR vs. KinoPAX across dynamics models and environments. Bold denotes best per cell.

	Environment A				Environment B				Environment C
Dynamics	Time₁	Cost₁	Time_f	Cost_f	Time₁	Cost₁	Time_f	Cost_f	Time₁	Cost₁	Time_f	Cost_f
6D DI	2.3ms	1.76	28.0ms	1.51	1.8ms	2.03	20.0ms	1.54	4.9ms	3.11	45.0ms	2.33
6D DA	4.8ms	1.71	22.0ms	1.56	5.9ms	1.69	6.0ms	1.66	14.8ms	3.42	32.0ms	2.98
12D QC	13.1ms	2.16	20.1ms	1.98	17.1ms	2.42	31.0ms	2.11	55.6ms	3.98	165.4ms	3.62

Convergence results for PAKR on KinoPAX environments and models. Median times and costs of the initial and final solutions.

Problem	Alg.	SR%	Time₁	Cost₁	Cost_f
Unicycle 1	iDb-A*	100	254ms	5.80s	5.10s
	SST*	100	600ms	8.34s	4.41s
	PAKR	100	1.3ms	4.62s	4.46s
Unicycle 2	iDb-A*	12	4637ms	8.70s	8.70s
	SST*	100	398ms	14.15s	6.95s
	PAKR	100	1.4ms	5.40s	4.75s
Acrobot	iDb-A*	100	1450ms	5.24s	4.96s
	SST*	74	3298ms	4.36s	3.39s
	PAKR	100	13ms	3.87s	3.22s
Quadcopter	iDb-A*	100	1387ms	2.56s	2.21s
	SST*	41	85457ms	9.64s	9.42s
	PAKR	100	175ms	7.54s	6.23s

DynoBench comparison against iDb-A* and SST*. Unicycle 1 uses velocity control; Unicycle 2 uses force control.

		Branching Factor (A)
Batch	Metric	2	16	64	128
4k	Success (%)	100.0	100.0	99.0	94.0
	Time (ms)	19.5	16.1	26.7	41.9
	Iters	22.0	36.0	69.0	104.0
	Nodes	37.6k	57.7k	107.5k	168.1k
8k	Success (%)	100.0	100.0	97.0	93.0
	Time (ms)	24.5	13.1	19.0	26.7
	Iters	15.0	21.0	39.0	57.0
	Nodes	54.3k	70.9k	124.9k	181.9k
16k	Success (%)	100.0	100.0	97.0	87.0
	Time (ms)	47.2	14.3	17.1	14.3
	Iters	12.0	14.0	25.0	25.0
	Nodes	89.9k	103.8k	162.7k	163.3k
32k	Success (%)	100.0	100.0	99.0	86.0
	Time (ms)	115.3	26.9	20.1	19.9
	Iters	10.0	12.0	17.0	20.0
	Nodes	154.6k	175.5k	232.3k	277.0k

Batch size and branching factor sensitivity on 12D Quadcopter (Env A). Bold values are global minimums for time, iteration count, and tree size.

BibTeX (preprint)

@inproceedings{gao2026fastasymptoticallyoptimalkinodynamic,
      title={Fast Asymptotically Optimal Kinodynamic Planning via Vectorization},
      author={Gao, Yitian and Lu, Andrew and Kingston, Zachary},
      booktitle={Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS)},
      year={2026},
      note={To appear},
      url={https://arxiv.org/abs/2607.03987}
      }
